| HARDWARE FEATURES | |
|---|---|
| Interface | 1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port |
| Power Supply | AC 100V~240V |
| Button | 1 * RST/WPS Button, 1 *Power ON/OFF |
| LED Indicators | 1 * Wi-Fi, 1 * Extending, 1 * LAN |
| Antenna | 2 *4dBi External Antennas |
| Dimensions (W x D x H) | 2.2 x 3.7 x 1.4 in. (56 x 93 x 35.8mm) |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| RF Frequency | 2.4~2.4835GHz |
| Data Rate | 802. 11n: Up to 300Mbps |
| 802.11g: Up to 54Mbps (dynamic) | |
| 802.11b: Up to11Mbps (dynamic) | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Reception Sensitivity | 270M: -61 dBm@10% PER |
| 135M: -65 dBm@10% PER | |
| 54M: -68 dBm@10% PER | |
| 11M: -85 dBm@8% PER | |
| 6M: -88 dBm@10% PER | |
| 1M: -90 dBm@8% PER | |
| Others | - |

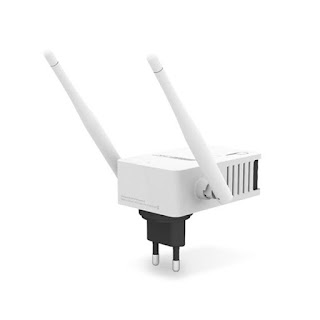

| Package Contents | EX300 Wireless Extender *1 |
| Ethernet Cable *1 | |
| Quick Installation Guide *1 | |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Totolink N300RH V3 300Mbps Long Range Wireless N Router
HARDWARE FEATURES | |
|---|---|
Interface | 4*10/100Mbps LAN Ports |
1*10/100Mbps WAN Port | |
Power Supply | 12V DC/1A |
Antenna | 2*8dBi detachable antennas |
Passive PoE | WAN Port & the LAN Port beside the WAN Port Supported |
Button | RST/WPS Button |
LED Indicators | 1*Power, 1*CPU, 1*Wireless, 1*WAN, 4*LAN |
Dimensions (L x W x H) | 7.1 x 4.2 x 1.0 in. (180 x 106 x 24.5 mm) |
WIRELESS FEATURES | |
|---|---|
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
RF Frequency | 2.4~2.4835GHz |
Data Rate | 802.11n: Up to 300Mbps |
802.11g: Up to 54Mbps (dynamic) | |
802.11b: Up to11Mbps (dynamic) | |
EIRP | < 20dBm (For countries using CE standard) |
< 27dBm (For countries using FCC standard) | |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Reception Sensitivity | 270M: -61 dBm@10% PER |
135M: -65 dBm@10% PER | |
54M: -68 dBm@10% PER | |
11M: -85 dBm@8% PER | |
6M: -88 dBm@10% PER | |
1M: -90 dBm@8% PER | |
SOFTWARE FEATURES | |
|---|---|
Operation Mode | Wireless ISP Client Router |
Wireless Client | |
Repeater(Range Extender) | |
Router | |
Bridge with AP | |
Client | |
Network | VLAN, IPv6 |
WAN Type | DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP (dual access) |
Wireless Functions | Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
Schedule | Reboot Schedule, Wireless Schedule |
Firewall | MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ |
Management | Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control, SSH Server |
Package Contents | N300RH Wireless Router *1 |
8dBi antennas*2 | |
Power Adapter *1 | |
Ethernet Cable *1 | |
Quick Installation Guide *1 | |
Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing | |
Garansi 3 Tahun
Berat : 1000 Gram
Harga (Update Agustus 2020) : Rp. 342.500,-
Belanja Online Klik Disini :
https://tokopedia.com/acckomputer/totolink-n300rh-v3-300mbps-high-power-wireless-n-router
| HARDWARE FEATURES | |
|---|---|
| Interface | 4 *10/100/1000Mbps LAN Ports |
| 1 *10/100/1000Mbps WAN Port | |
| 1 *USB 2.0 Port | |
| Power Supply | 12V DC/2A |
| Button | 1 *WPS Button |
| 1 *RST Button | |
| LED Indicators | 1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN, 1*USB |
| Antenna | 2 *5dBi Fixed Antennas(2.4GHz ), 2 *5dBi Fixed Antennas(5GHz ) |
| Dimensions (L x W x H) | 7.2 x 5.3 x 1.0 in. ( 182.3 x 133.8 x 25.9 mm) |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 867Mbps | |
| EIRP | 2.4GHz < 20dBm |
| 5GHz < 23dBm | |
| Channels | 2.4GHz: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan) |
| 5GHz: 36~165 | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Reception Sensitivity - 2.4G: | 11b: <-79dbm； |
| 11g: <-68dbm； | |
| 11n: HT20 <-65dbm HT40: <-61dbm | |
| - 5G: | 11a: <-68dbm； |
| 11ac: HT20 <-65dbm HT40: <-61dbm HT80: <-51dbm |
| SOFTWARE FEATURES | |
|---|---|
| WAN Type | PPPoE/DHCP/Static IP |
| Wireless Functions | Multiple SSID, Wireless Bridge, MAC Authentication, |
| WDS, WPS,Wireless Scheduler | |
| NAT / Routing | Port Forwarding, DMZ/Twin IP, Port Trigger |
| Firewall | Internet Access Control: IP/MAC Address filtering |
| Net Detector | |
| Utility | VPN, DDNS, WOL, Host Scan, IPTV |
| Traffic | QoS, Connection Control |
| System | System Log, Admin Setup, Firmware Upgrade, |
| System Time, Config Backup and Restore | |
| USB Storage | FTP Service |
| Samba Service | |
| URL Service | |
| Package Contents | A2004NS Wireless Router *1 |
| Power Adapter *1 | |
| Ethernet Cable *1 | |
| Quick Installation Guide *1 | |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing |
